Specifications Summary Table

Attribute	Specification
Barcode Type	1D laser
Supported Symbologies	UPC/EAN, Code 39/93/128, I2of5, etc.
Resolution	≥ 5 mil (0.127 mm)
Speed	150 scans/sec (up to 200 listed)
Depth	0–750 mm
Voltage	5 V ± 10%
Current	≤ 40 mA
Temperature Range	0 °C–50 °C; Storage –20 °C–60 °C
Humidity	5–95%
Light Immunity	Up to 100,000 Lux
Durability	Drop 2 m; IP42
Cable Length	1.8 m USB 2.0
Weight	~150 g
Interface	USB 2.0 HID/Keyboard‑Wedge

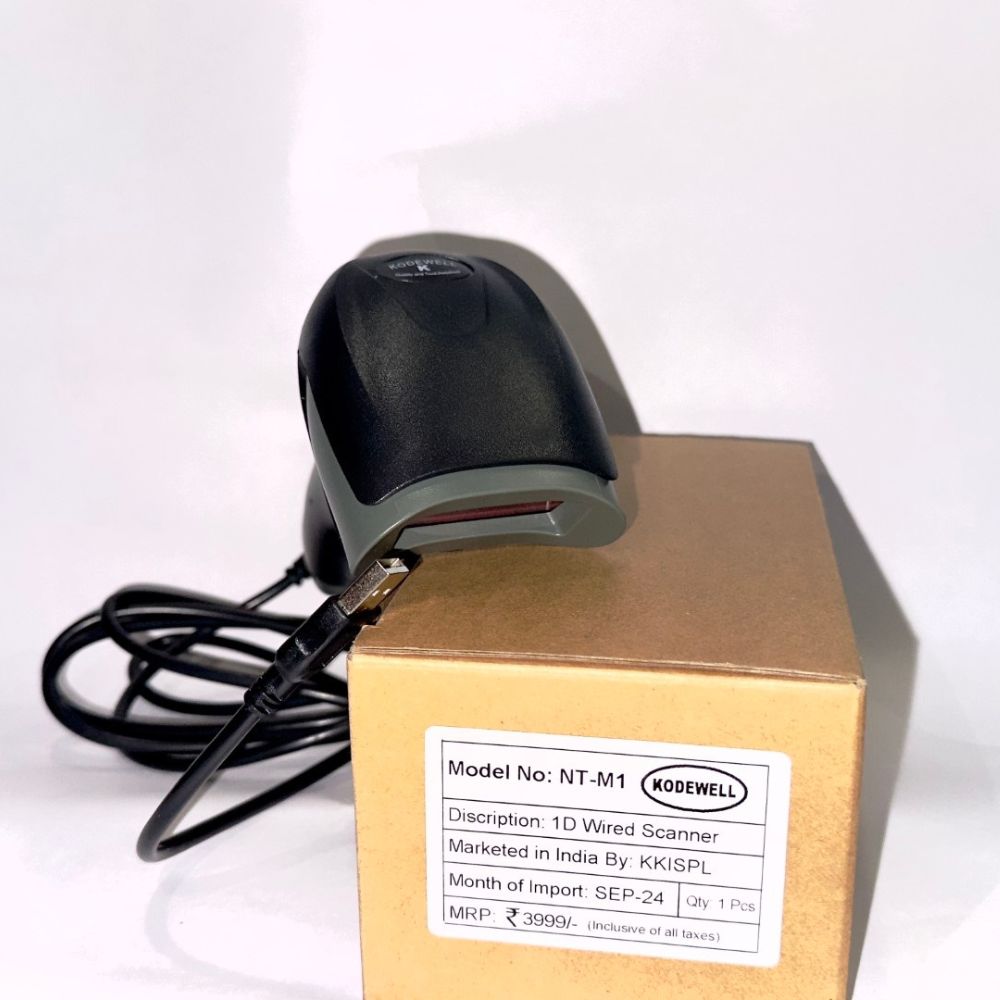

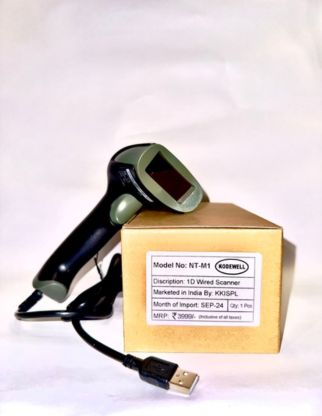

Kodewell NT-M1 1D Laser Wired Handheld Barcode Scanner

Scanning & Optical Specs

Scan Element: Laser (650 nm visible red laser diode)
Barcode Support: Standard 1D symbologies (UPC/EAN, Code 128, Code 39, Code 93, Interleaved 2 of 5, Code 32, MSI, Plessey, DataBar14, Telepen, etc.)
Resolution: ≥ 5 mil (≈ 0.127 mm)
Scan Speed: 150 scans/sec (up to 200 scans/sec)
Depth of Field: 0–750 mm
Scan Angles: Tilt ±60°, Skew ±65°

Mechanical & Performance Specs

Decode Rate: < 1 error per 500,000 scans
Print Contrast: ≥ 35% PCS
Yaw (Skew) Angle: 45°; Pitch: 60°

Electrical & Connectivity

Interface: USB 2.0 (HID/Keyboard‑wedge) with 1.8 m fixed cable
Operating Voltage: 5 V DC ± 10%
Current Draw: ≤ 40 mA
Processor: 32‑bit microprocessor; USB 2.0 full speed (12 Mbps)

Environmental & Durability

Operating Temp: 0 °C to +50 °C (32 °F to 122 °F)
Storage Temp: –20 °C to +60 °C (–4 °F to 140 °F)
Humidity: 5 – 95% (non‑condensing)
Ambient Light Immunity: Up to 100,000 Lux
Impact Resistance: Withstands drops from up to 2 m onto concrete
Ingress Protection: IP42 rated (splash/dust resistant)

Ergonomics

Weight: Approx. 150 g
Design: Textured grip, balanced weight, tactile scan button, quiet operation mode

Software & Integration Features

Plug‑and‑Play: No driver install required; supports Windows, macOS, Linux, Chrome OS
Modes: HID & Keyboard-Wedge
Features:
- Auto-discrimination of barcode types
- Configurable prefix/suffix insertion
- Adjustable scan sensitivity
- Multiple interface emulation modes

Ideal Use Cases

Retail POS: Fast scanning under varied lighting
Warehouse & Logistics: Reliable reads on damaged/low-contrast codes
Inventory/Asset Management: Compatible with USB‑OTG on mobile devices
Quiet Environments: Library-friendly low-noise mode
